Figma Workflow — Implement, Review, Optimize in 4 Phases
Implementing a Figma design in a single pass usually leaves visual drift, type errors, duplicated markup and loose Tailwind classes behind.
$15
Figma Workflow — Implement, Review, Optimize in 4 Phases
Example session with this skill installed
/figma-workflow https://www.figma.com/design/QZhp5dSdNjU2fdjCiKkqyA/figma-enhance?node-id=10-2 — target file: src/pages/index.astro
- Read your context and instructions
- Compiled the figma workflow
- Generated the app files

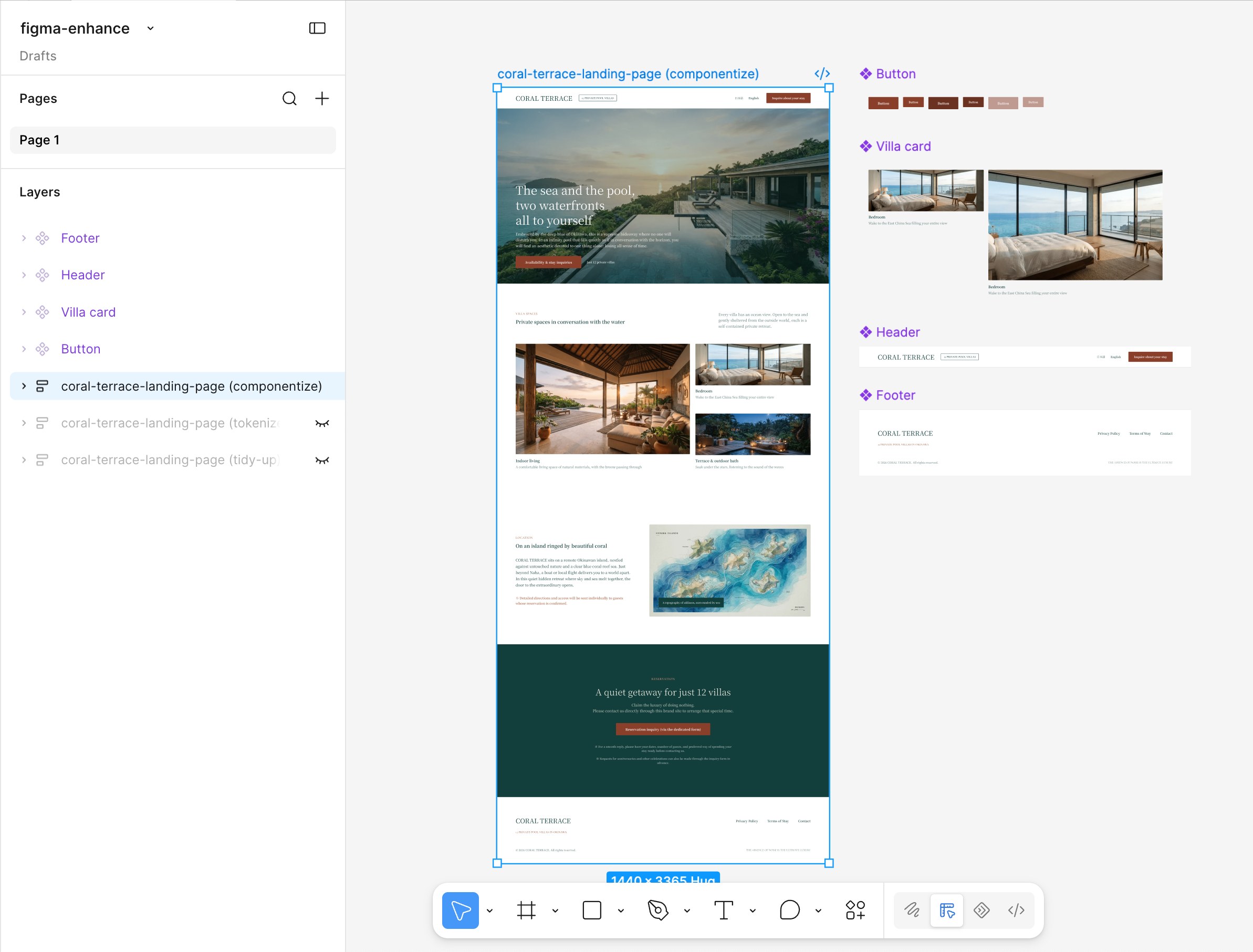

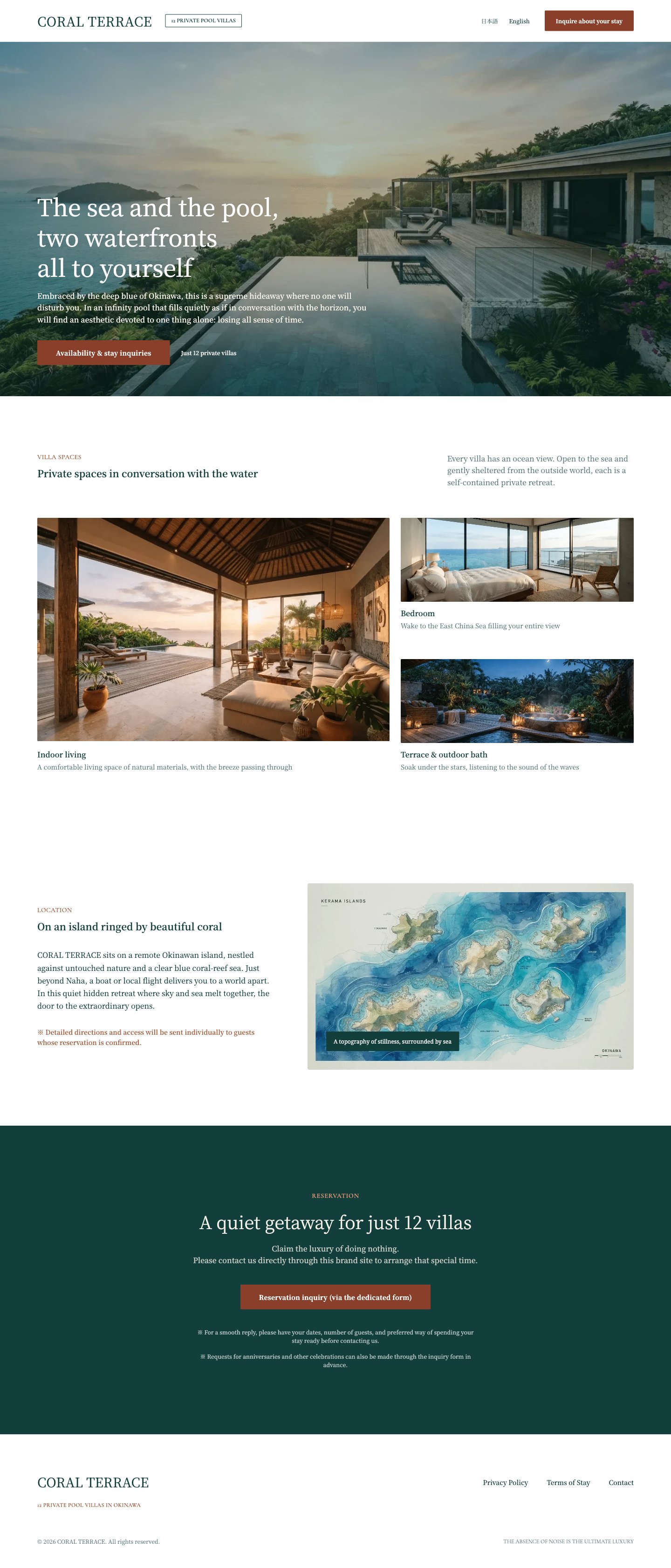

The project is a fresh Astro 7 + Tailwind v4 starter with only the demo Welcome component in it. The Figma frame is a 1440 × 3365 landing page for a private-villa resort (header, hero, villa spaces, location, reservation, footer) that had already been tidied and componentized in Figma. The skill detected an Astro project, ran four phases one after another, and finished with one combined report.
Phase 1 — Implementation

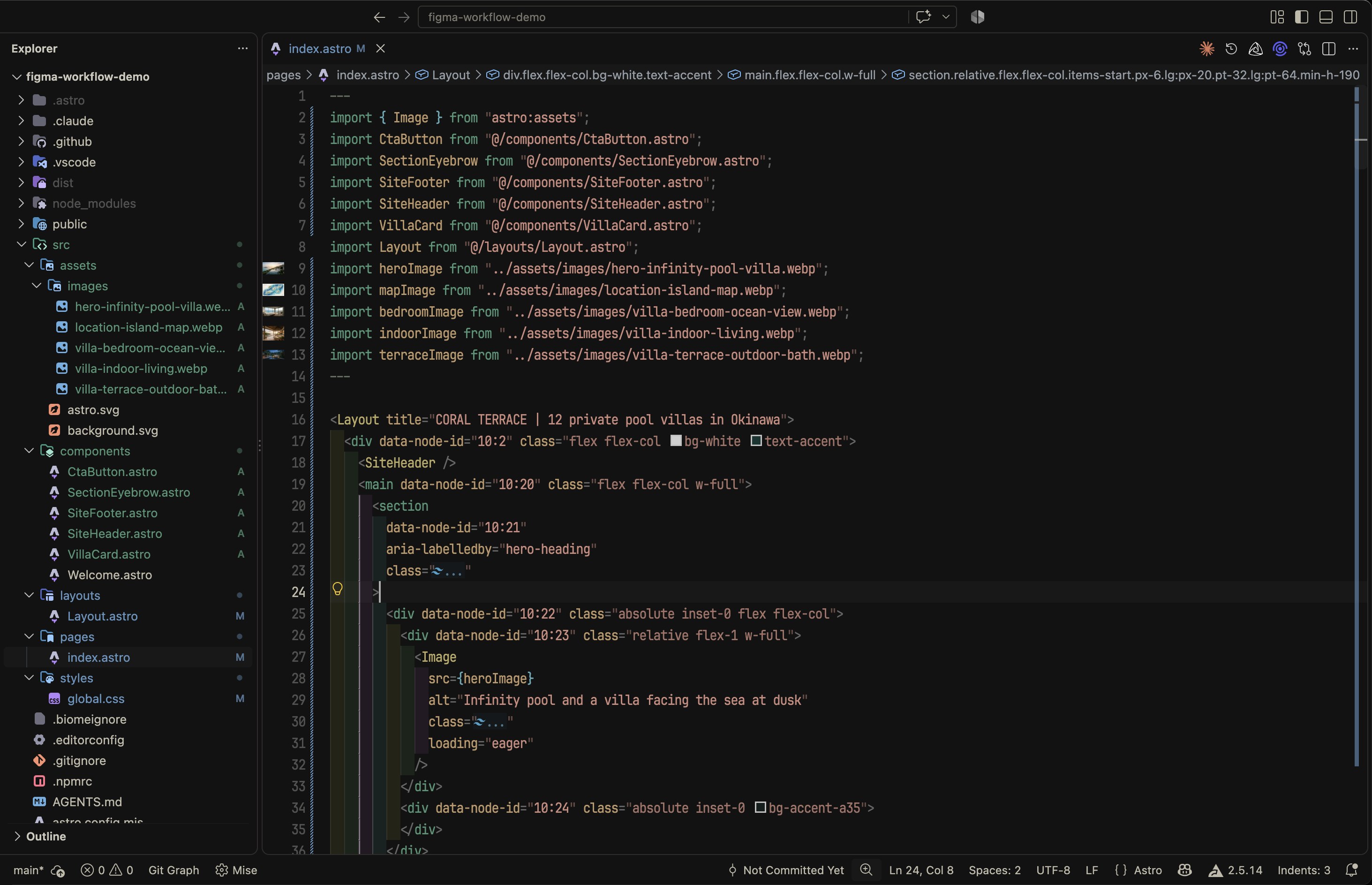

Read the design context and tokens through the Figma MCP server, then built the page in src/pages/index.astro, replacing the starter content.
- 4 components:
SiteHeader,SiteFooter,CtaButton,VillaCard(the villa card is used three times, the CTA button three times) - 5 images saved as local webp files and used through Astro's
<Image />; no Figma asset URL is left in the code - Fonts, colors and four text sizes added to
@theme; spacing already mapped to Tailwind's default scale data-node-idcarried onto the matching elements
Phase 2 — Review

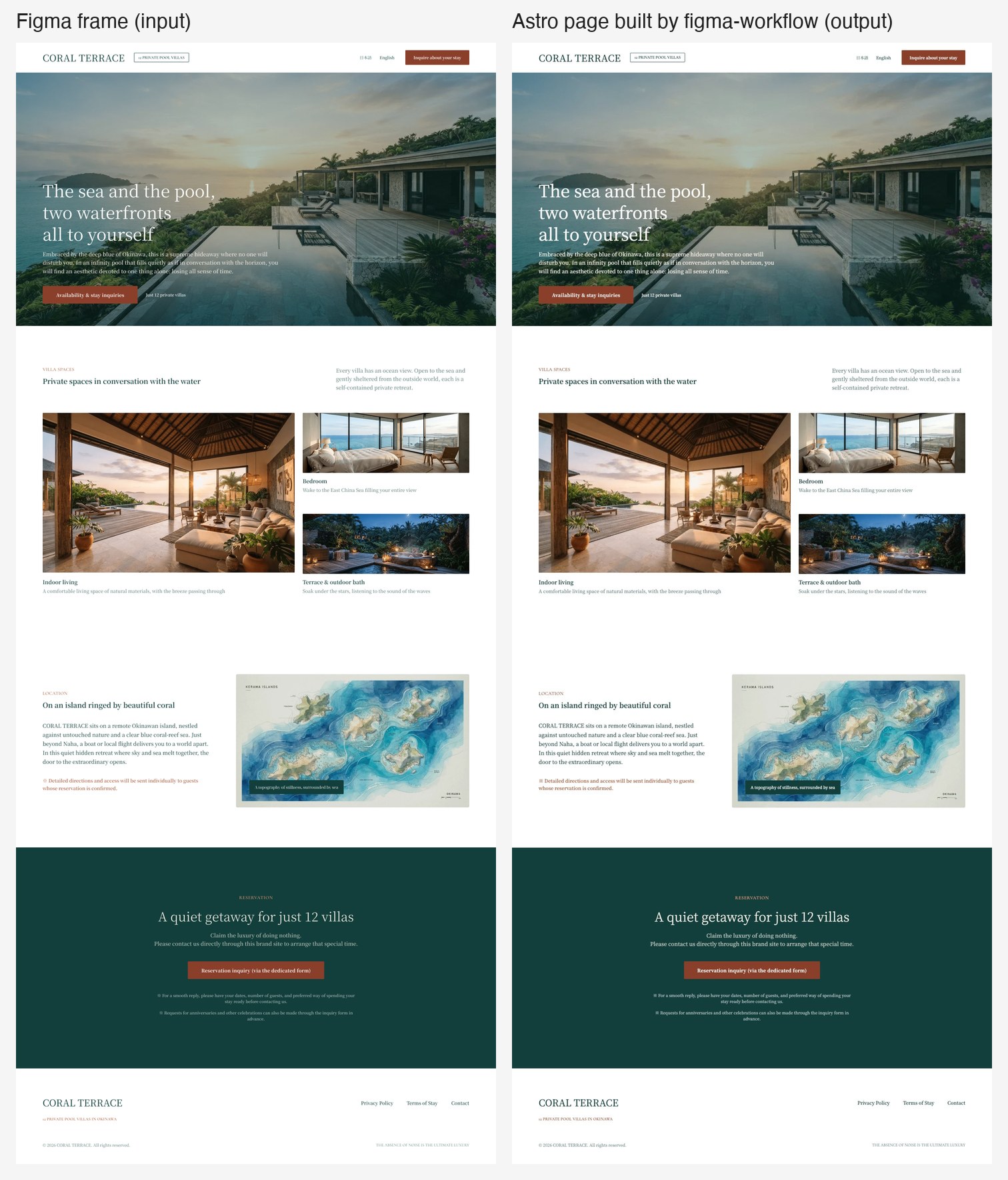

Compared the implementation with the Figma screenshot of the same node.
- One real difference found and fixed: the header rendered 951px wide and the footer 755px instead of the full 1440px, because of a stray
items-starton the root wrapper. Removing it put both back at 1440px with their inner elements at the Figma positions. - Every other section matched Figma within 1px on position, size and padding; total page height is 3364px against 3365px in Figma.
- Type check: 0 errors, 0 warnings, 0 hints.
Phase 3 — Optimization
- Three repeated line-height values and two corner-radius values moved into
@themetokens (--leading-caption,--leading-small,--leading-body,--radius-brand,--radius-media) - The three section labels became one
SectionEyebrowcomponent - Values used only once (for example
max-w-[720px]) were left inline on purpose
Phase 4 — Tailwind Review
- Arbitrary pixel values that divide cleanly by 4 were converted to scale utilities (
min-h-[760px]becamemin-h-190,max-w-[720px]becamemax-w-180) - The language switcher links were wrapped in a proper
<ul><li>list - Values off the 4px grid and one-off line heights were left as they are
Final state
| Check | Result |
|---|---|
astro check | 0 errors, 0 warnings, 0 hints |
Biome check | no fixes needed |
build | succeeds, 1 page |
data-node-id in the built HTML | 91, all unique |
| Figma asset URLs left in code | 0 |
What was not checked
The review looked at the desktop layout and at one narrow width (500px); tablet and a true 390px phone width were not checked. Accessibility was reviewed by reading the code (landmarks, heading order, alt text, labels); color contrast and keyboard navigation were not measured. The language link points to a page that does not exist yet, and the footer policy links are # placeholders, as the design has no destinations for them.
figma-workflow-implement-review-optimize-app.zip
ZIP · project files
Example file from a real run - the skill writes it into your workspace.
Connects securely to your tools. The creator never sees your data.
About this skill
Implementing a Figma design in a single pass usually leaves visual drift, type errors, duplicated markup and loose Tailwind classes behind. This skill splits the job into phases, each run by its own sub-agent with a focused prompt, and starts the next one only after the previous one has reported back.
Who it is for
People who already have a working environment: an Astro, React or plain-HTML project with a guidelines file (CLAUDE.md or AGENTS.md), and an agent connected to the Figma MCP server. This skill does not build that environment for you.
Results depend on your Figma file
The skill can only build what the design gives it. Without variables it falls back to arbitrary values, and without components the code is not split into components. Before you run it, check the frame with figma-audit (free): it scores layer naming, auto layout, variables and components, and tells you what to fix first.
What it does
- Detects your project type (Astro, React, or plain HTML/TypeScript) and picks the matching prompts and number of phases
- Phase 1, Implementation: reads the design context, tokens and annotations through the Figma MCP server, reuses your existing components and
@themetokens, and builds the page or component following your project's agent guidelines (CLAUDE.md or AGENTS.md) - Phase 2, Review: compares the implementation with the Figma screenshot of the same node, fixes layout, style and responsive differences, resolves type errors, and runs code-style and accessibility checks
- Phase 3, Optimization (Astro and React): organizes components and design tokens
- Phase 4, Tailwind Review: cleans up Tailwind classes with the free tailwind-review skill when it is installed; skipped, and reported as skipped, when it is not
- Carries Figma's
data-node-idattribute onto the matching elements, so a later design change can be traced to the exact element that implements it - Ends with one combined report covering every phase
How it works
- You give it a Figma frame or section URL
- It detects the project type and confirms the target file if you did not name one
- It runs the phases in order, one sub-agent at a time
- It summarizes what each phase did and changed
What it is not
It does not set up a project or install dependencies: it works inside a project that already exists and already has a guidelines file. The review phase compares your code with the Figma screenshot and does not require a browser; if your agent can start the dev server, it may also measure the rendered page. For very tall pages, split the design into section frames (Hero, Features, CTA) and run it once per section, otherwise the context gets too large.
Requirements
Runs inside an agent connected to the official Figma MCP server, in a project with a CLAUDE.md (or AGENTS.md) that describes your conventions: the implementation follows it strictly, so it sets the quality of the result. The review and optimization phases run scripts from your package.json, by project type: Astro uses astro check plus your lint/format script, React uses build plus your lint/format script, and plain HTML uses build. The lint/format script can be Biome, ESLint, Prettier or whatever you use (check, lint, format); without one, that step is skipped and the report says so. Node.js is used for project detection. Optional: the free tailwind-review skill for Phase 4.
Other agents
Written for and tested on Claude Code. It is plain Markdown, so you can ask your own agent to adapt it: swap the guidelines file name, the Agent tool used to launch sub-agents, and the skill lookup paths. Other agents have not been tested.
Try it free first
Try it Free on Agensi does not apply to this skill: the free trial runs on Agensi's own servers, which have neither your project files nor a Figma connection. Use the example session above to see what a real run looks like.
Works on one Figma frame or section per run; split very tall pages into section frames. Needs an existing project with a guidelines file (CLAUDE.md or AGENTS.md) and the type-check / build scripts for your project type; the lint/format step runs whatever linter your project uses and is skipped if there is none. The review phase compares code with the Figma screenshot and does not require a browser; measuring the rendered page depends on what your agent can do. Tested on Claude Code only. Agensi's "Try it Free" does not apply, since its sandbox has no project files or Figma connection.
How to use
- 1
Connect your agent to the Agensi MCP
Copy the prompt and paste it into Claude, ChatGPT, Cursor or any agent that supports MCP. It sets up the connection for you. Manual setup
- 2
Sign in to Agensi
Your agent shows a sign-in link. Sign in and click Allow.
- 3
Ask for what you need
Your agent loads this skill and uses it on your task. It always asks before any payment.
Reviews
No reviews yet
Be one of the first to try it. Every listed skill goes through the trust checks below.
Security scanned
Checked by our 8-point scan before listing
Fresh listing
Recently published to Agensi
Money-back guarantee
Doesn't do what its page promises? You get your money back.
Trust & safety
Security scan
Security scan passed 1 month ago
Requires
Permissions
Allowed Hosts
File Scopes
This skill runs Terminal commands to detect the project type and to run the project's own astro check, build and lint scripts through its package manager, and may start the project's own dev server to measure the rendered page. It reads existing components, design tokens and the project's agent guidelines file, and writes the implemented page or component (plus review and optimization fixes) into the project. The skill's own code makes no network calls; the design is read through the official Figma MCP server the user's agent already has connected. How the Figma MCP server is connected differs by client; see the Figma MCP catalog for setup guides: https://www.figma.com/mcp-catalog/
